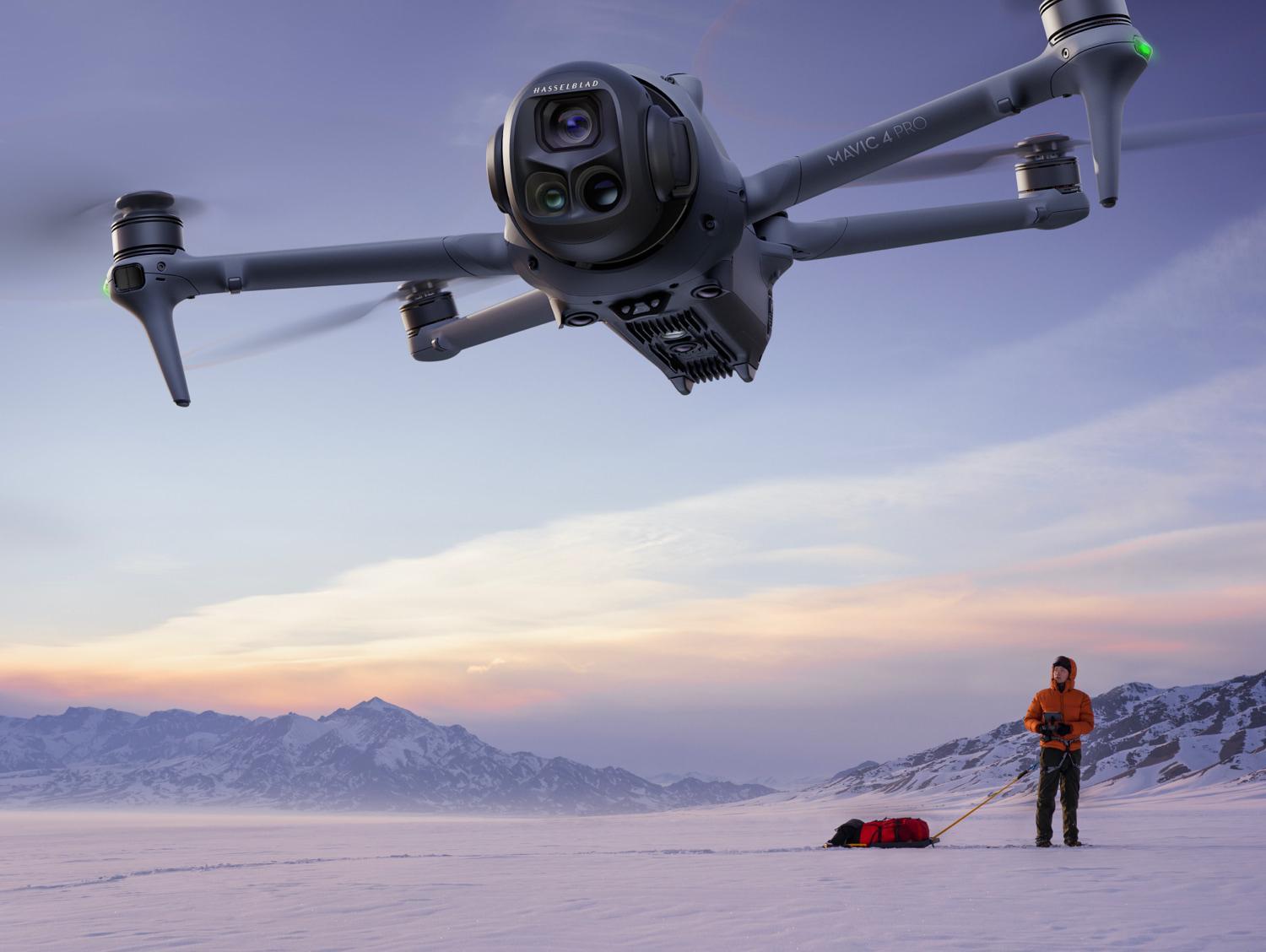

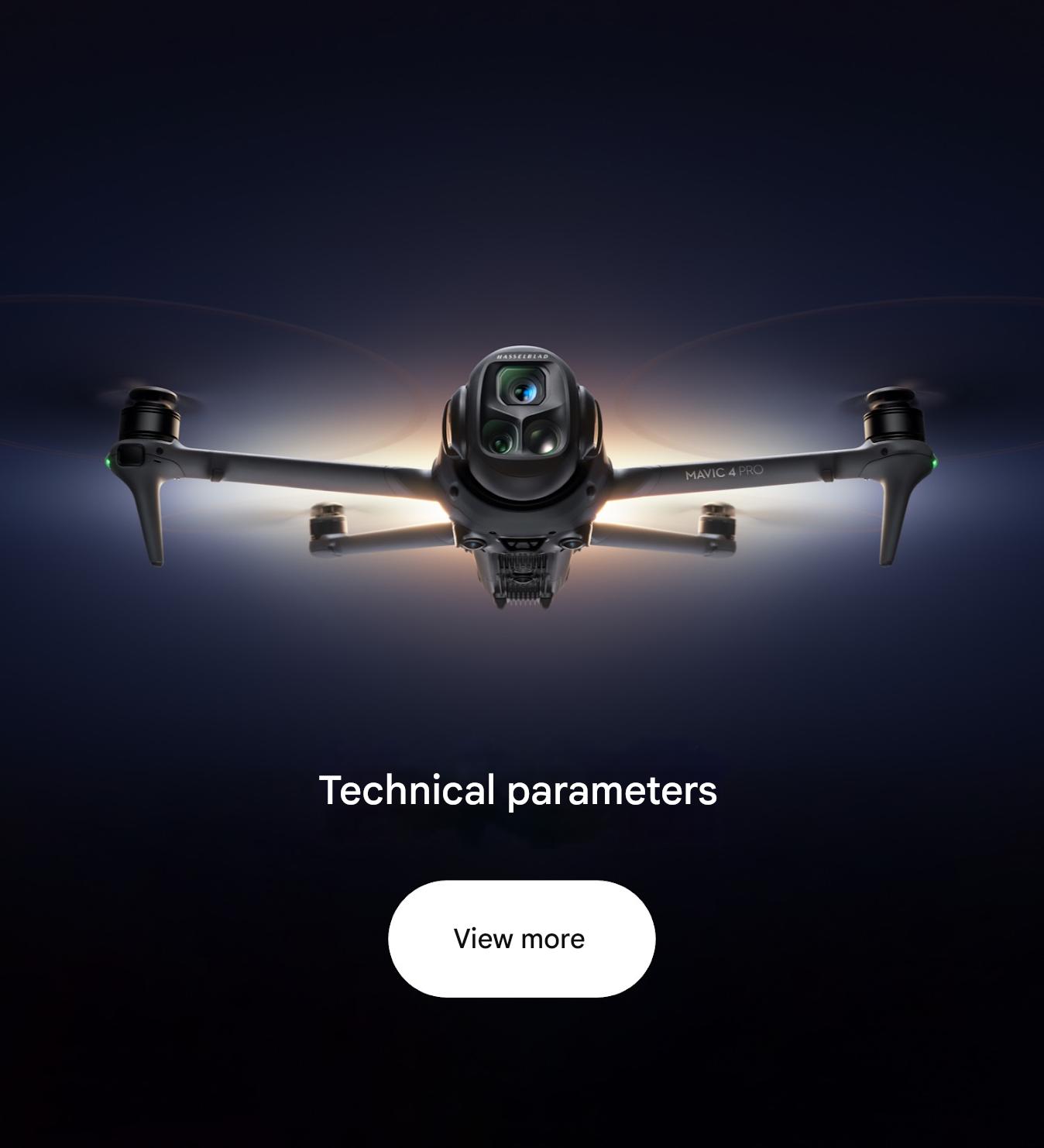

DJI Mavic 4 Pro

Aircraft

• Takeoff Weight

• Approx. 1063 g

  ^{Product weight may vary due to differences in batch materials and other factors.}

• Dimensions

• Folded (with propellers): 257.6×124.8×106.6 mm (L×W×H)
  Folded (without propellers): 257.6×124.8×103.4 mm (L×W×H)
  Unfolded (without propellers): 328.7×390.5×135.2 mm (L×W×H)

• Max Ascent Speed

• 10 m/s (Sport Mode)
  6 m/s (Normal Mode)
  6 m/s (Cine Mode)

• Max Descent Speed

• 10 m/s (Sport Mode)
  6 m/s (Normal Mode)
  6 m/s (Cine Mode)

• Max Horizontal Speed

• At sea level, in windless conditions:
  25 m/s* (Sport Mode)
  15 m/s (tracking status)
  At sea level, with 2 m/s tailwind, while flying in the same direction as the wind:
  27 m/s* (Sport Mode)
  15 m/s (tracking status)

  ^{* Measured in a wind tunnel test environment with the aircraft taking off from an altitude of 0 m and ascending vertically by 1.5 m in Sport mode. Data is for reference only. Always pay attention to reminders on the camera view during your flight.}

• Max Takeoff Altitude

• 6000 m

  ^{Maximum takeoff altitude is 3000 m with DJI Mavic 4 Pro Propeller Guards.}

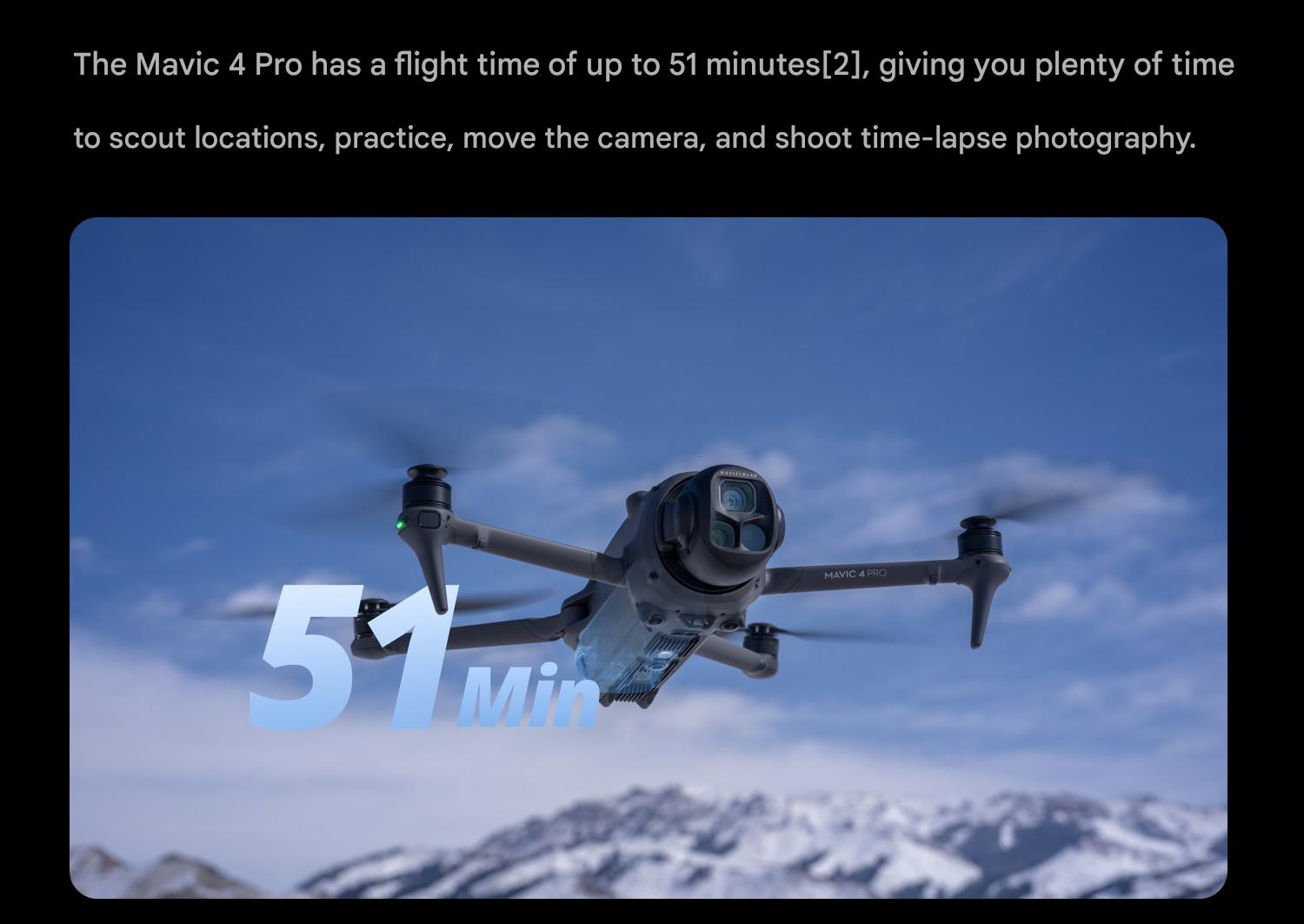

• Max Flight Time

• 51 minutes

  ^{Measured by the aircraft flying forward at a constant speed of 32.4 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.}

• Max Hovering Time

• 45 minutes

  ^{Measured by the aircraft hovering in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.}

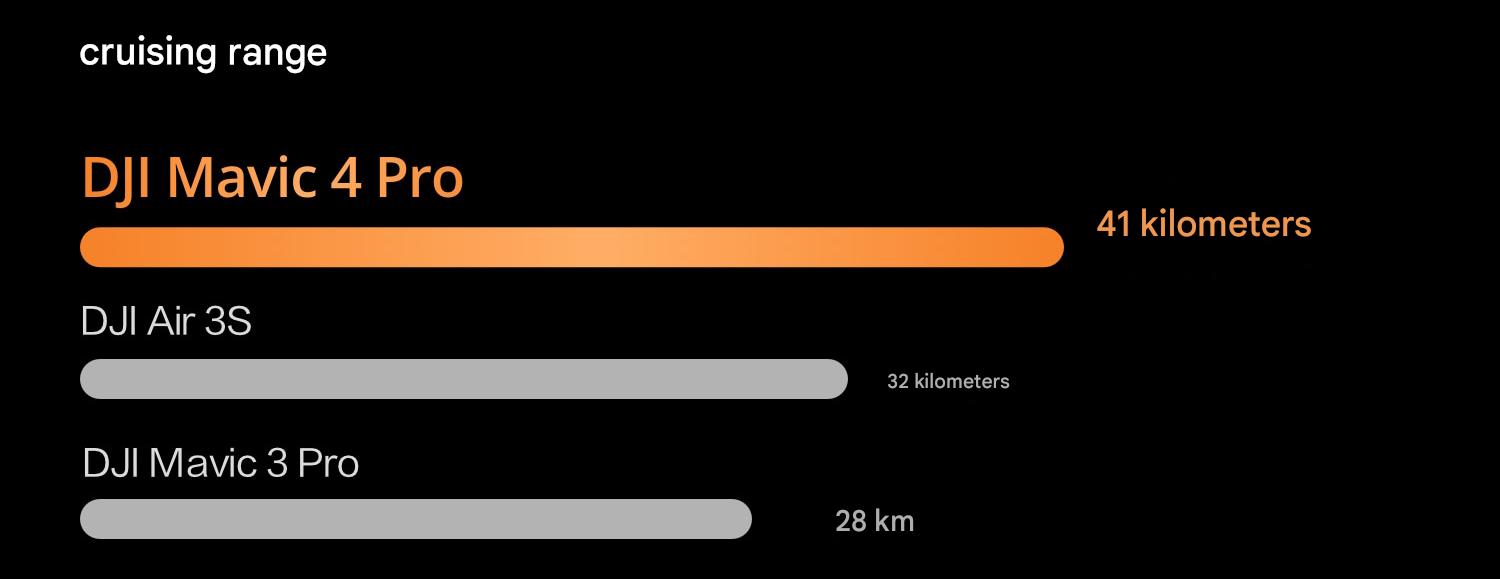

• Max Flight Distance

• 41 km

  ^{Measured by the aircraft flying forward at a constant speed of 54 kph in a windless environment at sea level, with Obstacle Avoidance Action set to Brake, in photo mode, and from 100% battery level until 0%. Actual experience may vary depending on the environment, usage, and firmware version.}

• Max Wind Speed Resistance

• 12 m/s (39.4 ft/s)

• Max Pitch Angle

• 35°

• Operating Temperature

• -10 °C to 40 °C (14 °F to 104 °F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with satellite positioning)

  Horizontal:
  ±0.3 m (with vision positioning)
  ±0.5 m (with satellite positioning)

• Internal Storage

• Mavic 4 Pro: 64GB (available storage space is approximately 42GB)
  Mavic 4 Pro 512GB (Creator Combo): 512GB (available storage space is approximately 460GB)

• Class

• C2 (EU)

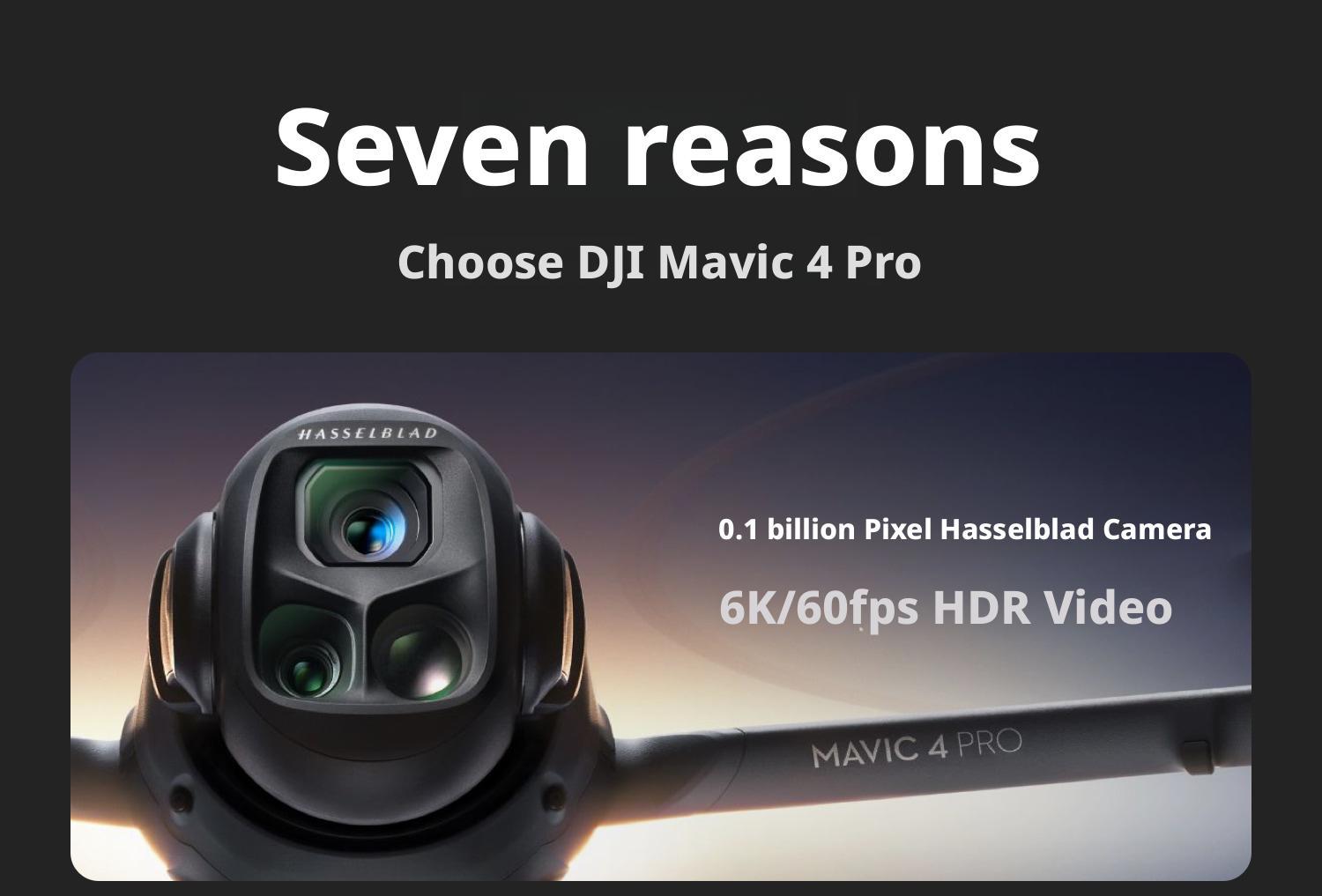

Camera

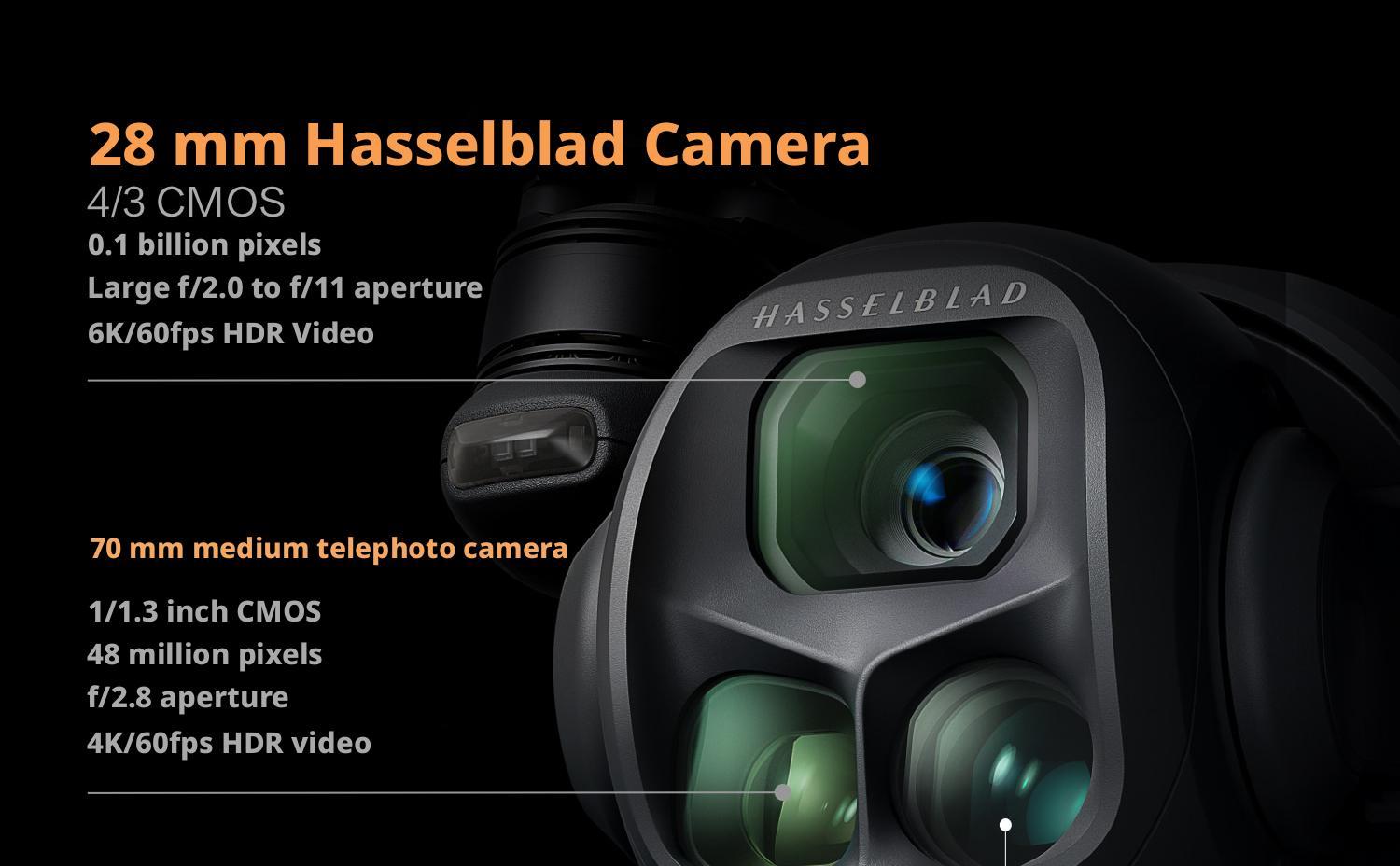

• Image Sensor

• Hasselblad Camera: 4/3 CMOS, Effective Pixels: 100 MP

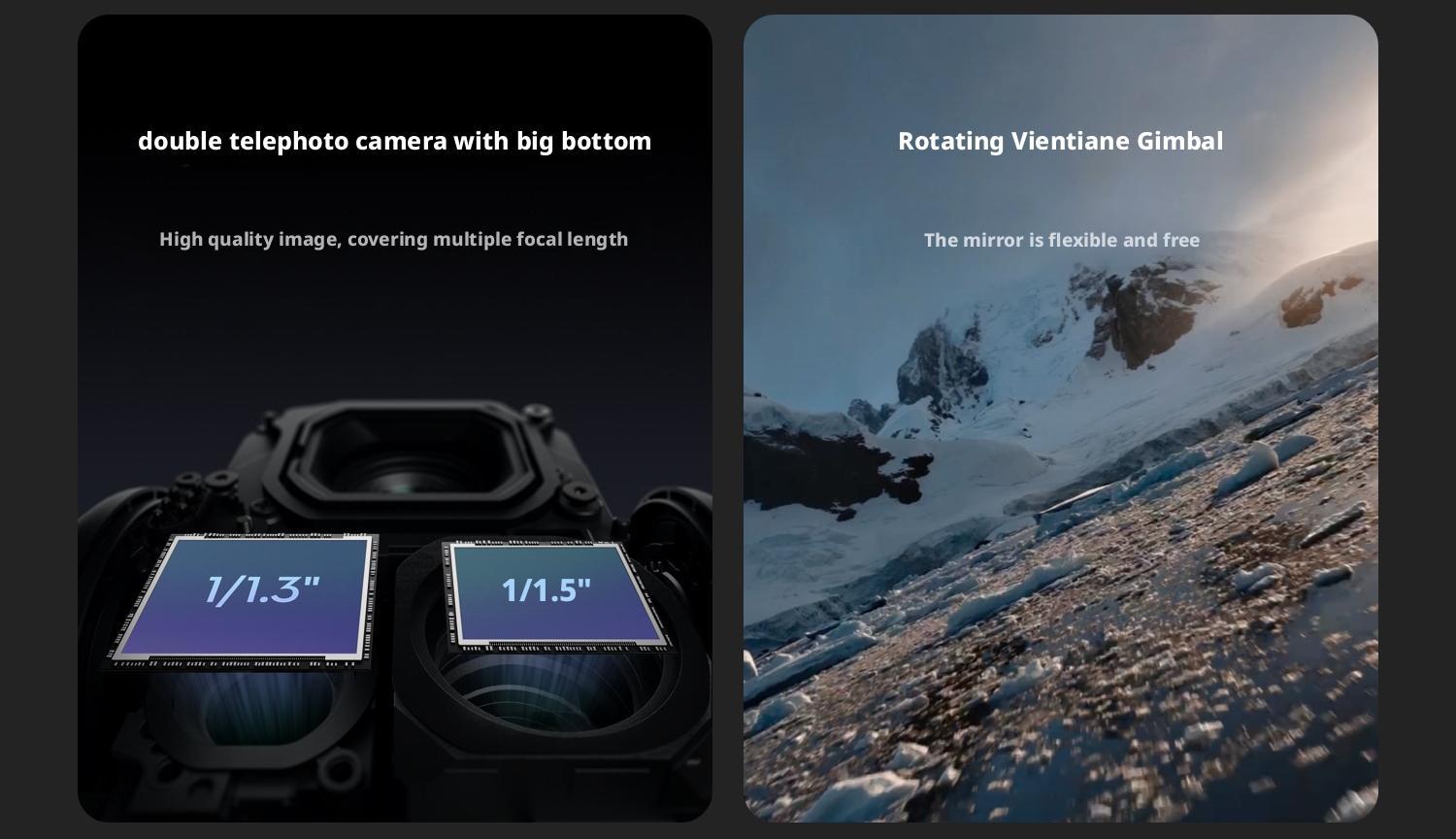

  Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
  Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 50 MP

• Lens

• Hasselblad Camera
  FOV: 72°
  Format Equivalent: 28 mm
  Aperture: f/2.0 to f/11
  Focus: 2 m to ∞

  Medium Tele Camera
  FOV: 35°
  Format Equivalent: 70 mm
  Aperture: f/2.8
  Focus: 3 m to ∞

  Tele Camera
  FOV: 15°
  Format Equivalent: 168 mm
  Aperture: f/2.8
  Focus: 3 m to ∞

• ISO Range

• Hasselblad Camera
  Video
  Normal:
  100-12800 (Normal)
  400-6400 (D-Log)
  100-6400 (D-Log M)
  100-6400 (HLG)
  Slow Motion:
  100-6400 (Normal)
  400-3200 (D-Log)
  100-3200 (D-Log M)
  100-3200 (HLG)
  100-6400 (25 MP)
  100-3200 (100 MP)

  Medium Tele Camera
  Video
  Normal:
  100-12800 (Normal)
  400-3200 (D-Log)
  100-3200 (D-Log M)
  100-3200 (HLG)
  Slow Motion:
  100-6400 (Normal)
  400-3200 (D-Log)
  100-3200 (D-Log M)
  100-3200 (HLG)
  100-6400 (12 MP)
  100-3200 (48 MP)

  Tele Camera
  Video
  Normal:
  100-12800 (Normal)
  400-3200 (D-Log)
  100-3200 (D-Log M)
  100-3200 (HLG)
  Slow Motion:
  100-6400 (Normal)
  400-3200 (D-Log)
  100-3200 (D-Log M)
  100-3200 (HLG)
  100-6400 (12.5 MP)
  100-3200 (50 MP)

• Shutter Speed

• Hasselblad Camera
  25MP Single Shot: 1/16000-16 s (over 2 s for simulated long exposure)
  100MP Single Shot: 1/8000-8 s
  25 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/16000-8 s
  100 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/8000-8 s

  Medium Tele Camera
  12 MP Single Shot: 1/16000-8 s (over 2 s for simulated long exposure)
  48 MP Single Shot: 1/8000-2 s
  12 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/16000-2 s
  48 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/8000-2 s

  Tele Camera
  12.5 MP Single Shot: 1/16000-8 s (over 1 s for simulated long exposure)
  50 MP Single Shot: 1/16000-2 s
  12.5 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/16000-2 s
  50 MP Auto Exposure Bracketing (AEB)/Burst Shooting/Timed: 1/16000-2 s

• Max Image Size

• Hasselblad Camera: 12288 × 8192
  Medium Tele Camera: 8064 × 6048
  Tele Camera: 8192 × 6144

• Still Photography Modes

• Hasselblad Camera
  Single Shot: 25 MP, 100 MP
  Automatic Exposure Bracketing (AEB): 25 MP, 3/5/7 frames at 0.7 EV step; 100 MP, 3/5 frames at 0.7 EV step
  Burst Shooting: 25 MP, 3/5/7 frames; 100 MP, 3/5 frames
  Timed: 25 MP, 1 (Mavic 4 Pro 512GB)/2/3/5/7/10/15/20/30/60 seconds; 100 MP, 2 (Mavic 4 Pro 512GB)/3 (Mavic 4 Pro 512GB)/5 (Mavic 4 Pro 512GB)/7 (Mavic 4 Pro 512GB)/10/15/20/30/60 seconds

  Medium Tele Camera
  Single Shot: 12 MP, 48 MP
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5/7 frames at 0.7 EV step; 48 MP, 3/5/7 frames at 0.7 EV step
  Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5/7 frames
  Timed: 12 MP, 1 (Mavic 4 Pro 512GB)/2/3/5/7/10/15/20/30/60 seconds; 48 MP, 1 (Mavic 4 Pro 512GB)/2 (Mavic 4 Pro 512GB)/3 (Mavic 4 Pro 512GB)/5/7/10/15/20/30/60 seconds

  Tele Camera
  Single Shot: 12.5 MP, 50 MP
  Auto Exposure Bracketing (AEB): 12.5 MP, 3/5/7 frames at 0.7 EV step; 50 MP, 3/5/7 frames at 0.7 EV step
  Burst Shooting: 12.5 MP, 3/5/7 frames; 50 MP, 3/5/7 frames
  Timed: 12.5 MP, 1 (Mavic 4 Pro 512GB)/2/3/5/7/10/15/20/30/60 seconds; 50 MP, 1 (Mavic 4 Pro 512GB)/2 (Mavic 4 Pro 512GB)/3 (Mavic 4 Pro 512GB)/5/7/10/15/20/30/60 seconds

• Photo Format

• JPEG
  DNG (RAW)

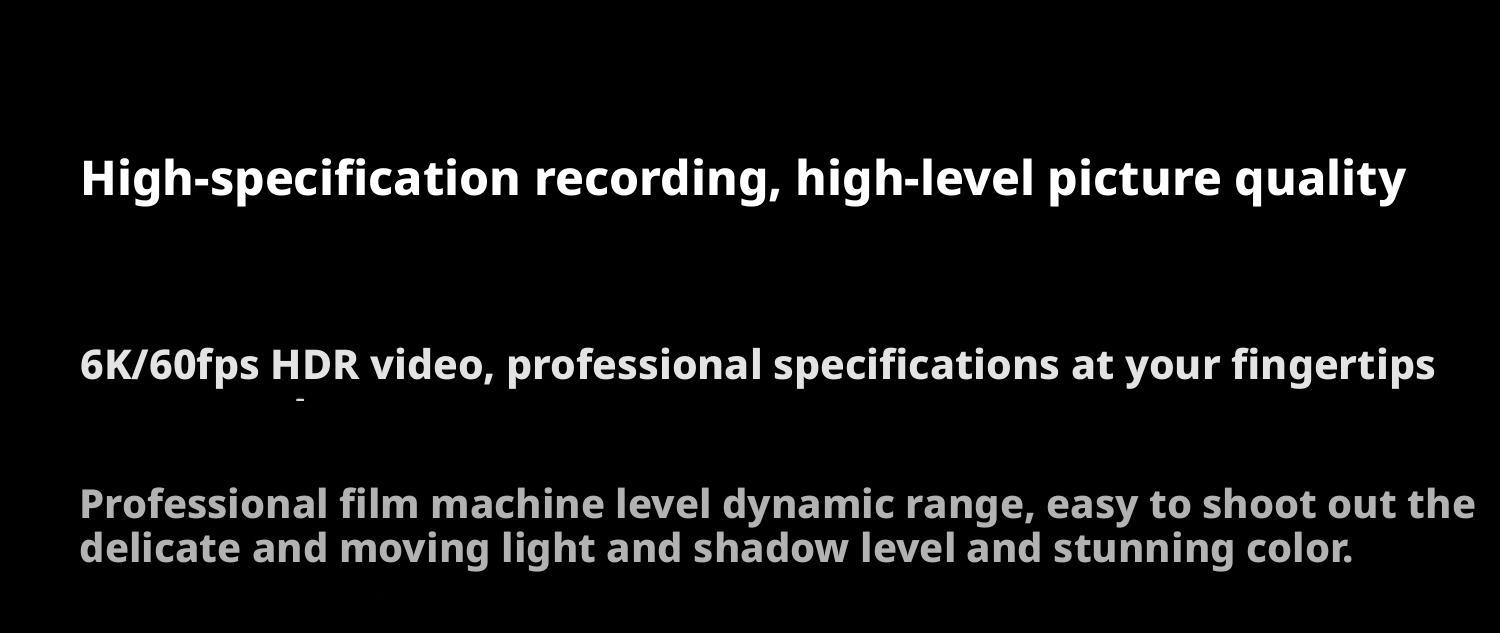

• Video Resolution

• Hasselblad Camera
  H.264 ALL-I/H.265 Standard*
  6K: 6016×3384@24/25/30/48/50/60fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120**fps
  4K: 3840×2160@24/25/30/48/50/60/120**fps
  FHD: 1920×1080@24/25/30/48/50/60fps
  4K Vertical Shooting: 2160×3840@24/25/30/48/50/60fps
  H.264 Standard
  FHD: 1920×1080@24/25/30/48/50/60fps

  Medium Tele Camera
  H.264 ALL-I/H.265 Standard*
  4K: 3840×2160@24/25/30/48/50/60/120**fps
  FHD: 1920×1080@24/25/30/48/50/60fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
  H.264 Standard
  FHD: 1920×1080@24/25/30/48/50/60fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

  Tele Camera
  H.264 ALL-I/H.265 Standard*
  4K: 3840×2160@24/25/30/48/50/60/100**fps
  FHD: 1920×1080@24/25/30/48/50/60fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
  H.264 Standard
  FHD: 1920×1080@24/25/30/48/50/60fps
  2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

  ^{* Only Mavic 4 Pro 512GB (Creator Combo) supports H.264 ALL-I recording.
  ** Recording frame rates. The corresponding video plays as a slow-motion video.}

• Video Format

• MP4 (H.264 ALL-I/H.264 Standard/H.265 Standard)

  ^{Only Mavic 4 Pro 512GB (Creator Combo) supports H.264 ALL-I recording.}

• Max Video Bitrate

• H.264 Standard Bitrate: 90 Mbps
  H.265 Standard Bitrate: 180 Mbps
  H.264 ALL-I Bitrate: 1200 Mbps

  ^{Only Mavic 4 Pro 512GB (Creator Combo) supports H.264 ALL-I recording.}

• Supported File System

• exFAT

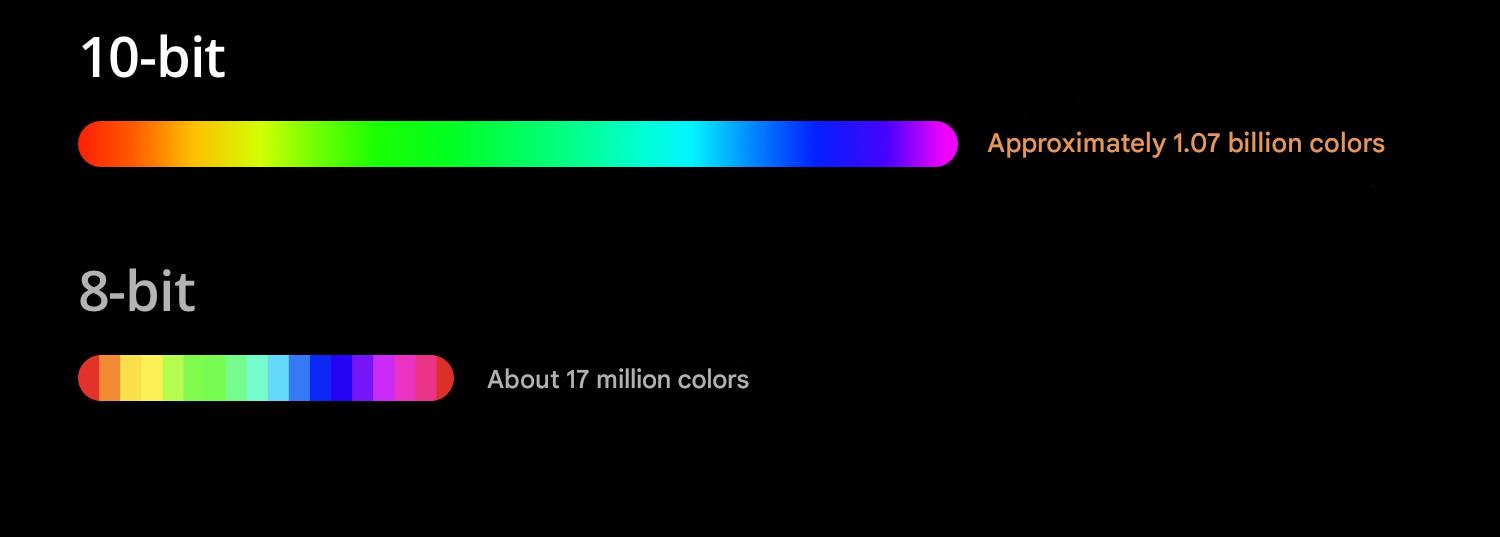

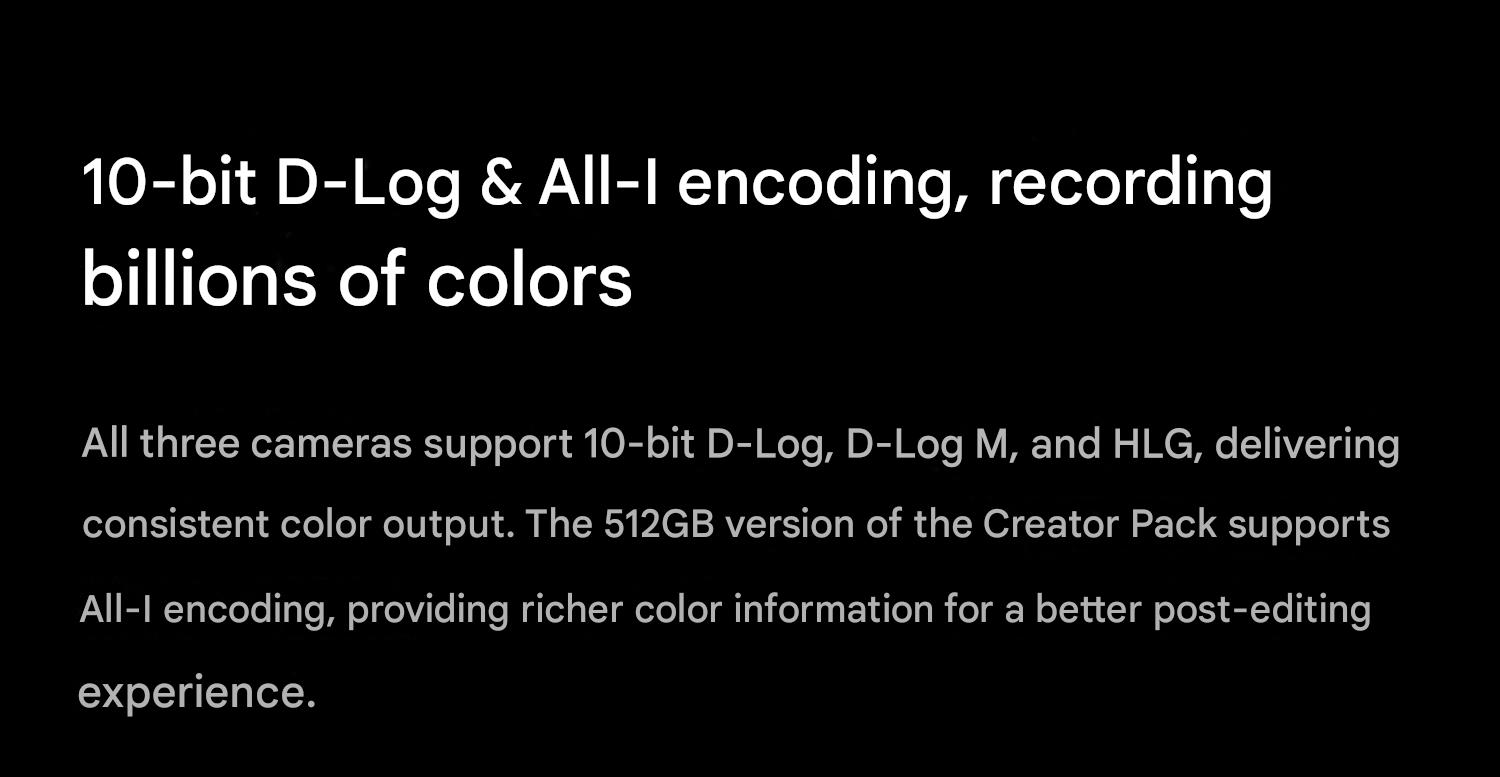

• Color Mode and Sampling Method

• Hasselblad Camera
  Normal Color:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)
  8-bit 4:2:0 (H.264 Standard)
  HLG/D-Log M/D-Log:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)

  Medium Tele Camera
  Normal Color:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)
  8-bit 4:2:0 (H.264 Standard)
  HLG/D-Log M/D-Log:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)

  Tele Camera
  Normal Color:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)
  8-bit 4:2:0 (H.264 Standard)
  HLG/D-Log M/D-Log:
  10-bit 4:2:2 (H.264 ALL-I)
  10-bit 4:2:0 (H.265 Standard)

  ^{Only Mavic 4 Pro 512GB (Creator Combo) supports H.264 ALL-I recording.}

• Digital Zoom

• Hasselblad Camera: 1x to 2.5x
  Medium Tele Camera: 2.5x to 6x
  Tele Camera: 6x to 24x

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range

• Tilt: -164° to 160°
  Roll: -90° to 450°
  Pan: -22° to 22°

• Controllable Range

• Tilt: -90° to 70°
  Roll: -40° to 400°

• Max Control Speed

• Tilt: 100°/s
  Roll: 100°/s

• Angular Vibration Range

• Hovering Without Wind: ±0.001°
  Normal Mode: ±0.003°
  Sport Mode: ±0.005°

Sensing

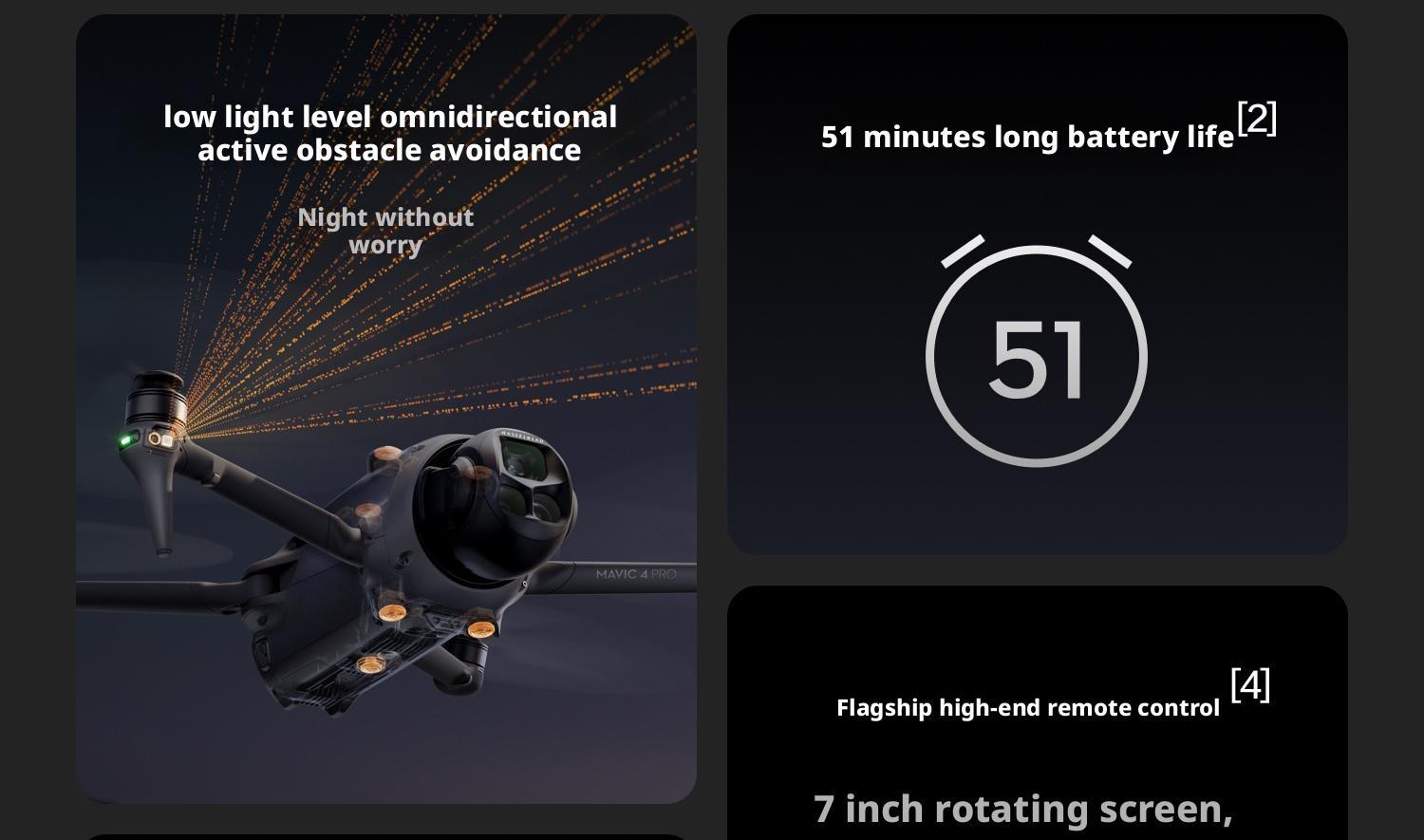

• Sensing Type

• Omnidirectional binocular vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range:
  0.5-24 m
  Detection Range:
  0.5-200 m
  Effective Sensing Speed:
  Flight Speed ≤ 18 m/s
  FOV:
  Horizontal 180°, Vertical 180°

• Backward

• Measurement Range:
  0.5-22 m
  Detection Range:
  0.5-200 m
  Effective Sensing Speed:
  Flight Speed ≤ 18 m/s
  FOV:
  Horizontal 180°, Vertical 180°

• Lateral

• Measurement Range:
  0.5-21 m
  Detection Range:
  0.5-200 m
  Effective Sensing Speed:
  Flight Speed ≤ 18 m/s
  FOV:
  Horizontal 180°, Vertical 180°

• Upward

• Measurement Range:
  0.5-18 m
  Effective Sensing Speed:
  Flight Speed ≤6 m/s
  FOV:
  Horizontal 90°, Vertical 90°

• Downward

• Measurement Range:
  0.5-17 m
  Effective Sensing Speed:
  Flight Speed ≤6 m/s
  FOV:
  Horizontal 180°, vertical 180°

• 3D Infrared Sensing System

• Forward-Facing LiDAR
  Measurement Range (nighttime): 0.5-25 m (reflectivity > 10%)
  FOV: Up and Down 60°, Left and Right 60°

  Downward-Facing Infrared Sensor
  Measurement Range: 0.3-8 m (reflectivity > 10%)
  FOV: Front and Back 60°, Left and Right 60°

• Operating Environment

• Forward, Backward, Left, Right, and Upward:
  Surfaces with discernible patterns, adequate lighting (lux > 0.1, urban lighting environment).
  Downward:
  Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 0.1, urban lighting environment).

Video Transmission

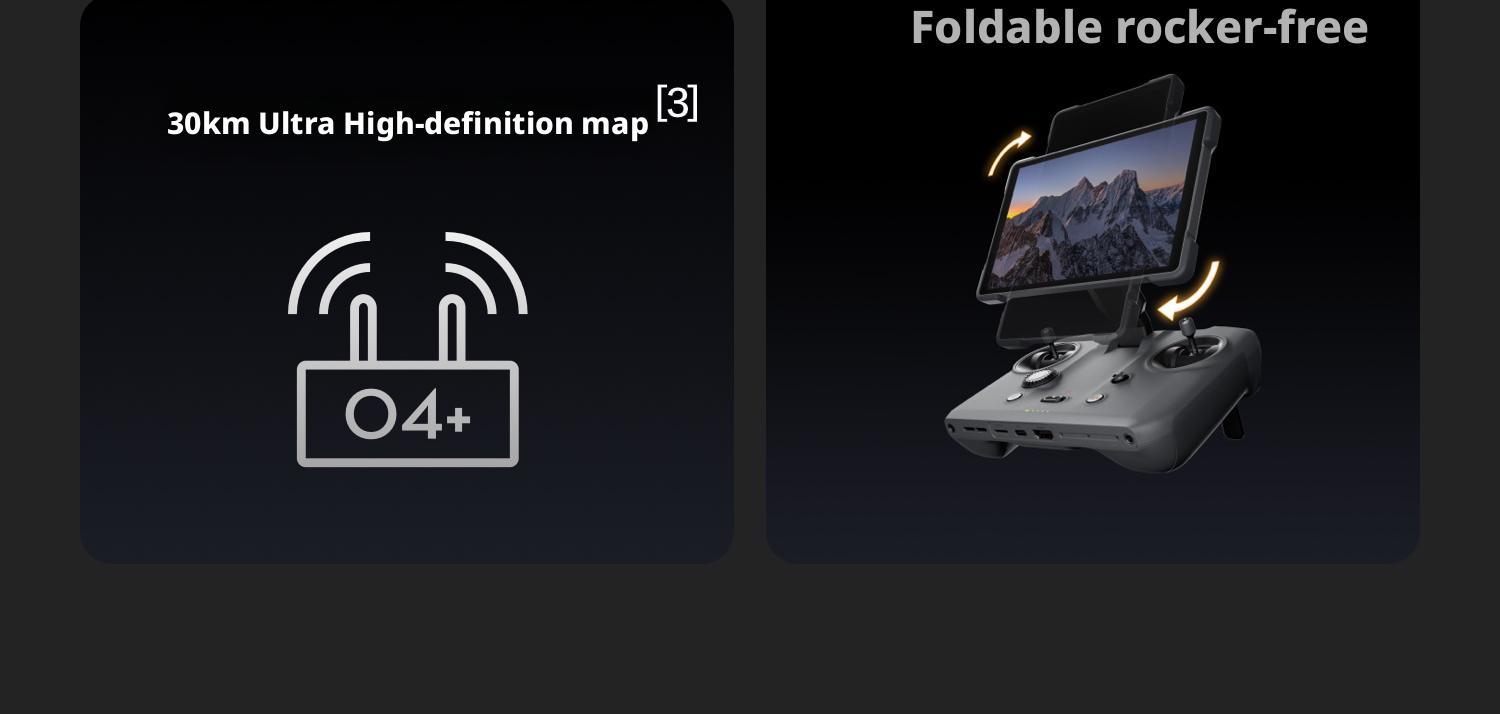

• Video Transmission System

• O4+

• Live View Quality

• Remote Controller: 1080p/30fps, 1080p/60fps

• Operating Frequency

• 2.4000-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.1 GHz:
  < 23 dBm (CE)

  5.8 GHz:
  < 33 dBm (FCC)
  < 14 dBm (CE)
  < 30 dBm (SRRC)

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 30 km
  CE: 15 km
  SRRC: 15 km
  MIC: 15 km

  ^{Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the drone's max flight distance. Always pay attention to RTH reminders on the camera view during your flight.}

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference (urban landscape): Approx. 1.5-6 km
  Medium Interference (suburban landscape): Approx. 6-15 km
  Low Interference (suburb/seaside): Approx. 15-30 km

  ^{Measured under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
  Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km

  ^{Measured under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed

• O4+: 10 MB/s*
  Wi-Fi 6: 80 MB/s*

  ^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• Compatible with DJI RC 2/ DJI RC Pro 2 Remote Controller: approx. 130 ms

  ^{Depending on the actual environment and mobile device.}

• Antenna

• 6 antennas, 2T4R

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac/ax

• Operating Frequency

• 2.4000-2.4835 GHz
  5.725-5.850 GHz

  ^{Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 23 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

  5.8 GHz:
  < 23 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.1

• Operating Frequency

• 2.4000-2.4835 GHz

  ^{Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.}

• Transmitter Power (EIRP)

• < 10 dBm

Battery

• Capacity

• 6654 mAh

• Weight

• Approx. 332 g

• Nominal Voltage

• 14.32 V

• Max Charging Voltage

• 17.2 V

• Battery Type

• Li-ion 4S

• Chemical System

• LiNiMnCoO2

• Energy

• 95.3 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

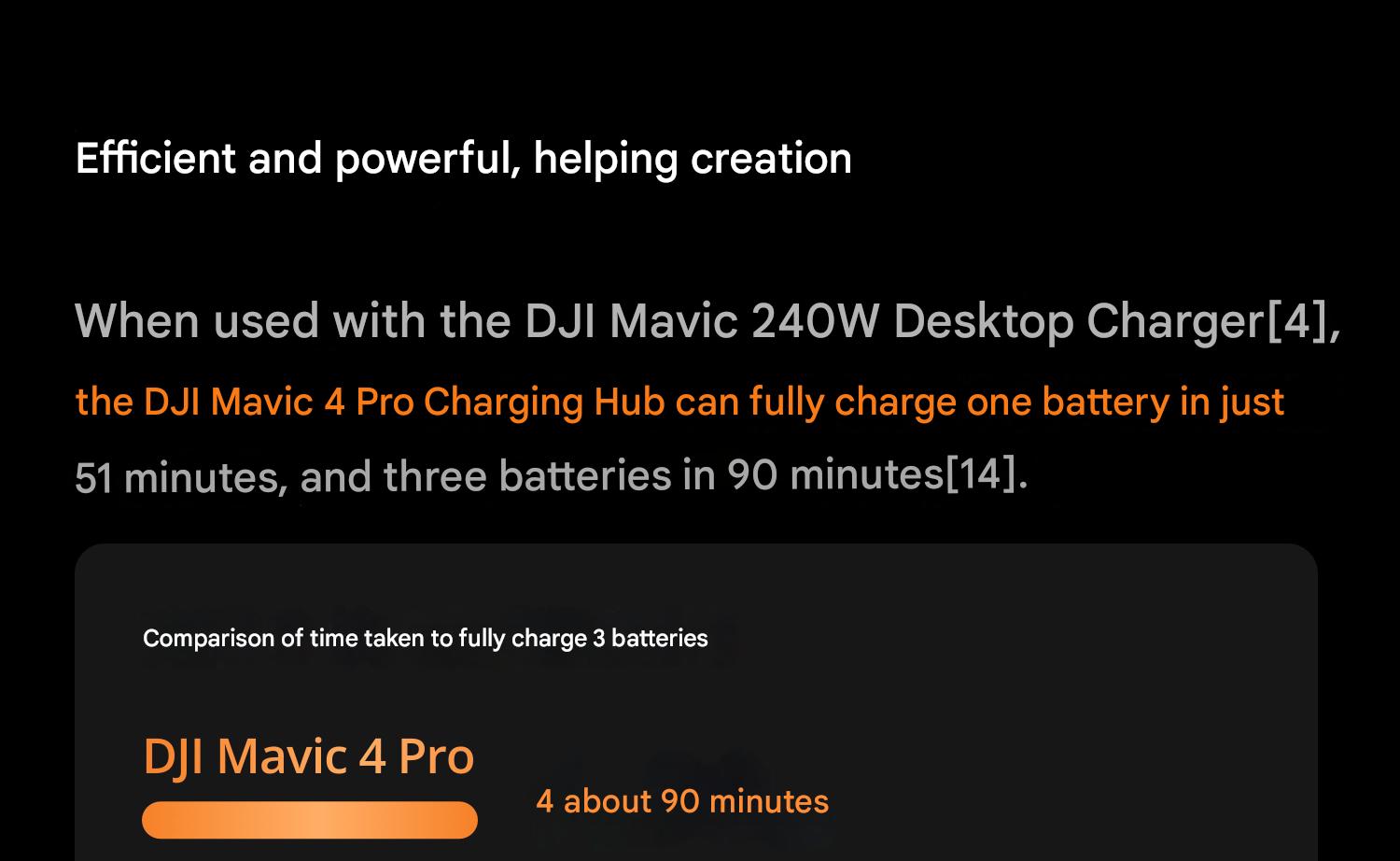

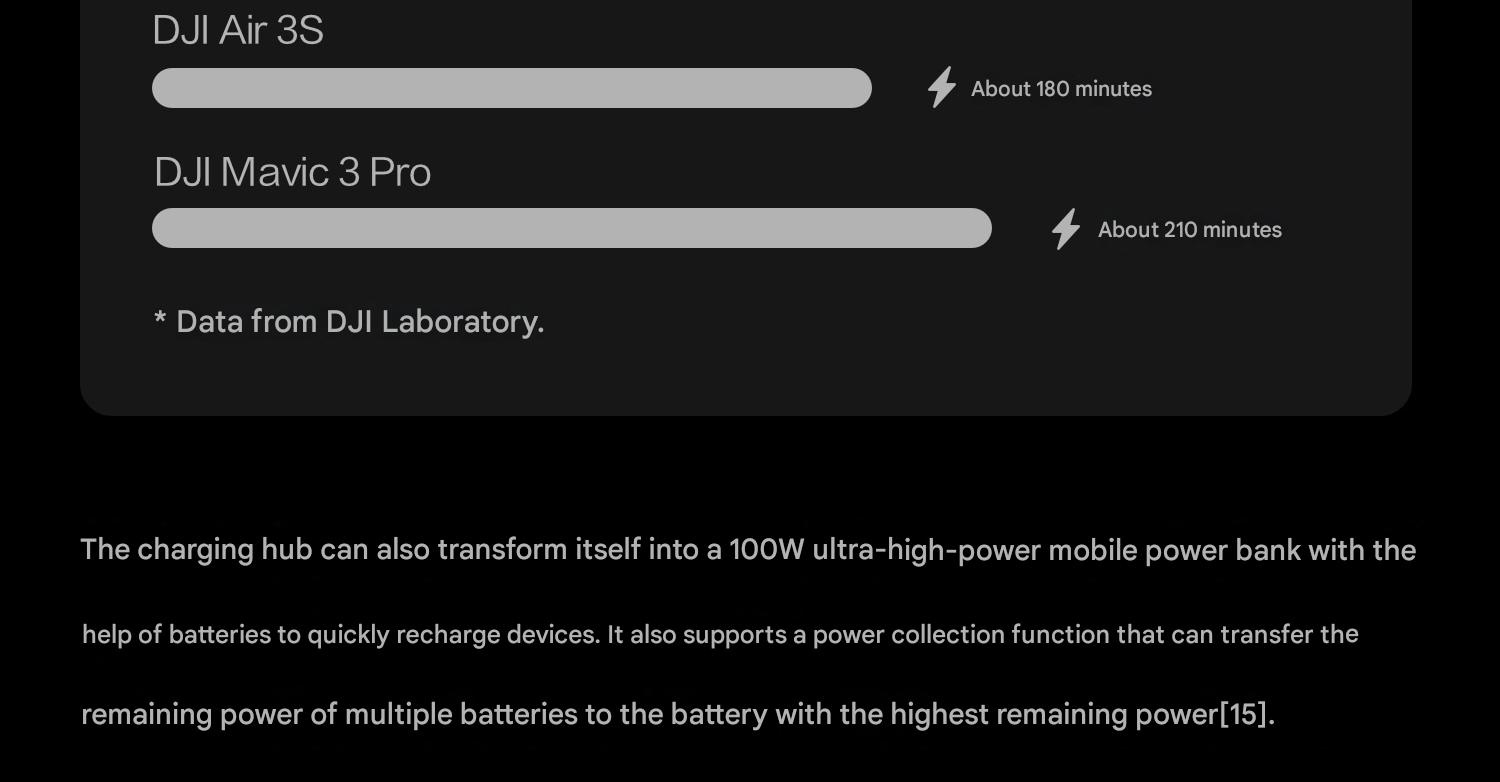

• Charging Time

• Using the DJI Mavic 240W Power Adapter with no other devices connected to the charger or the Charging Hub's USB-C port
  From 0% to 100%: 1 battery takes about 51 minutes, 3 batteries take about 90 minutes (200 V to 240 V input) or about 110 minutes (100 V to 127 V input)

  Using DJI 100W USB-C Power Adapter
  From 0% to 100%: 1 battery takes about 80 minutes

  Charging via the aircraft (65W max charging power)
  From 0% to 100%: 115 minutes

  ^{Charging time is measured in a test environment with a temperature of 25°C. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.}

Battery Charging Hub

• Input

• USB-C Port: 5 V to 20 V, max 5 A
  Mini SDC Port: 11.2 V to 17.6 V, max 15 A

• Output

• Battery Port: 10 V to 17.2 V, max 12 A

• Rated Power

• USB-C Port: Supports up to 100 W
  Mini SDC Port: Supports up to 240 W/15 A

• Charging Type

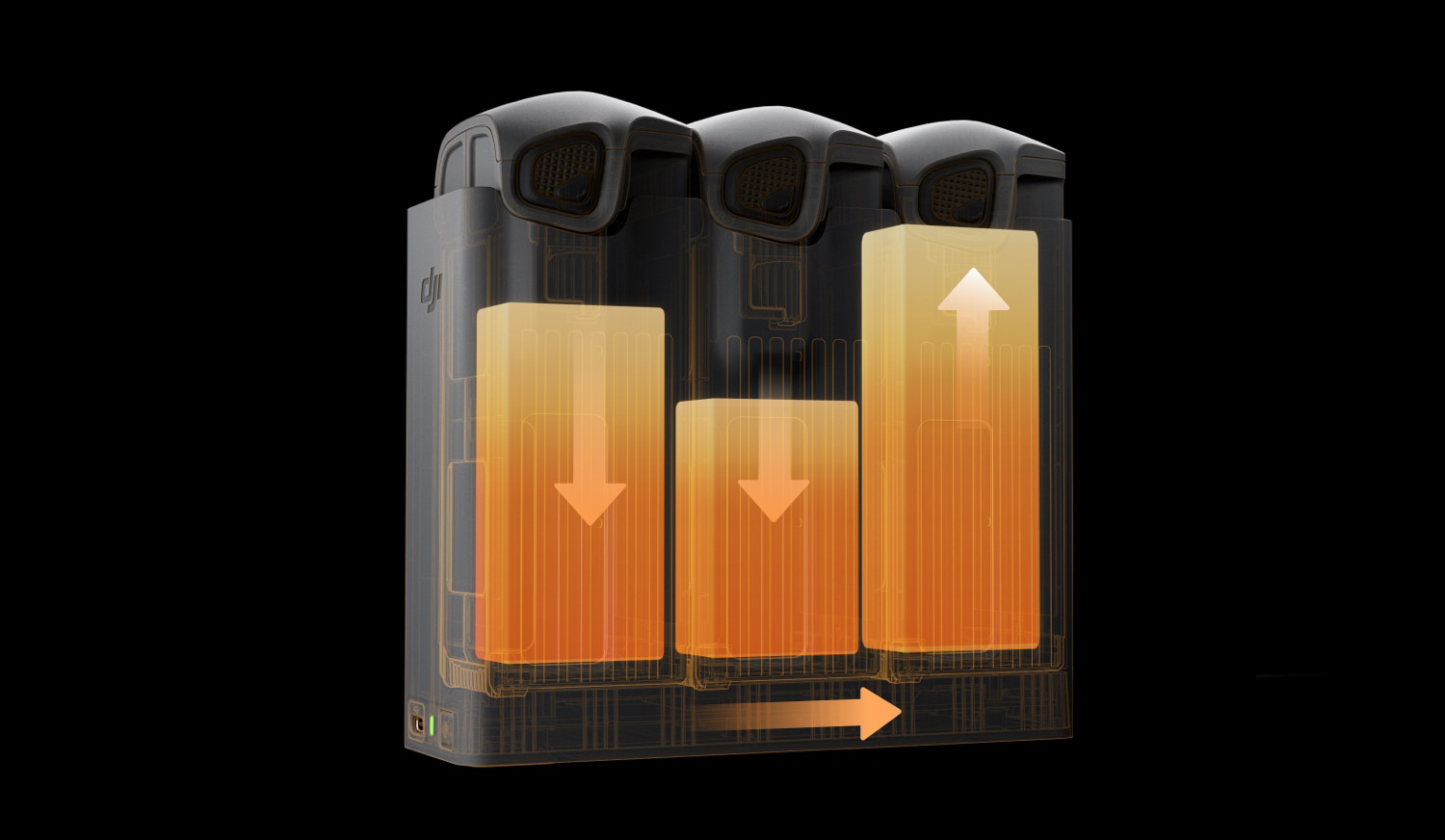

• When used with the DJI Mavic 240W Power Adapter: Supports parallel charging of three batteries (The Parallel Charging Hub will prioritize the battery with the lowest charge and switch to parallel charging once all three batteries reach the same charge level.)
  When used with the DJI 100W USB-C Power Adapter: Charges three batteries in sequence.

• Compatibility

• DJI Mavic 4 Pro Intelligent Flight Battery

Storage

• Recommended microSD Cards

• Lexar Silver plus 64GB A2 V30 microSDXC
  Lexar Silver plus 128GB A2 V30 microSDXC
  Lexar Silver plus 256GB A2 V30 microSDXC
  Lexar Silver plus 512GB A2 V30 microSDXC
  Lexar Silver plus 1TB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC
  Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC
